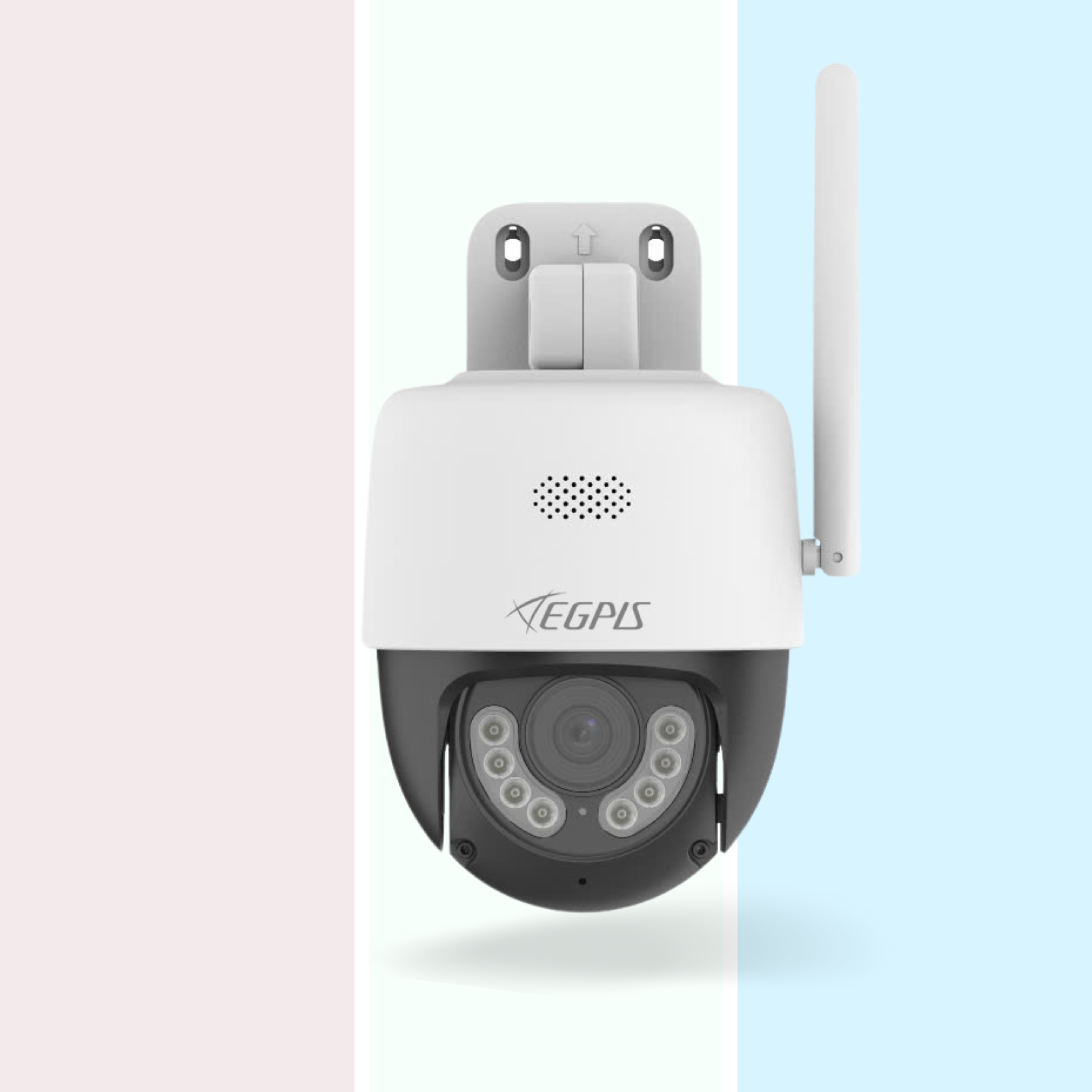

CAMERA 3MP HD Dual Light Network PT – ID: Uho-P1A-M3F4D
Liên hệ
- 2304*1296@20fps in the main stream
- Ultra 265, H.265, H.264
- Support cross line detection and intrusion detection
- Support digital WDR (Wide Dynamic Range)
- Built-in Mic & Speaker, support two-way audio, offer better interaction
- Support sound and light warning, makes warning and alarming more noticeable
- Smart IR, up to 30 m (98 ft) IR and 30m (98 ft) warm light distance, suitable for more scenes
- Self-contained bracket, support two kinds of mounting
- Supports 256 GB Micro SD card
- Wi-Fi connection and easy installation
- IP66 ingress protection
- The front face is made of grapheme, which has better heat dissipation and more environmental protection
-
Specifications
Camera Uho-P1A-M3F4D Sensor 1/2.8″ progressive scan, 3.0 megapixel, CMOS Min. Illumination Colour:0.005 lux (F1.6,AGC ON) 0 lux with IR
Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, shutter time: 1s ~ 1/100000s WDR Digital S/N >52 dB Lens Lens type 4mm Digital Zoom 4 Iris Fixed; F1.6 Field of View (H) 90.5° Field of View (V) 44.4° Field of View (D) 111.3° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 4mm 73.5 (241.0ft) 29.4 (96.4ft) 14.7 (48.2ft) 7.3 (24.1ft) Illuminator IR Range Up to 30m (98ft) Warm Light Range Up to 30m (98ft) Wavelength 850nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264 Frame Rate Main Stream: 3MP (2304*1296), Max 20fps; Sub Stream: 640*360, Max 20fps;
Video Bit Rate 128 Kbps ~ 6 Mbps ROI Support Video Stream Dual streams OSD Up to 2 OSDs Privacy Mask Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180° HLC Support BLC Support Defog Digital Defog Intelligent Behavior Detection Cross Line detection, Intrusion detection Human Body Detection Support Events Basic Detection Motion detection, Audio detection Auto tracking Support General Function Access Policy, RTSP Authentication, User Authentication Audio Audio Compression G.711U,G.711A Two-way Audio Support Suppression Support Sampling Rate 8 kHz Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR Network Protocols IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, HTTPS, 802.1x , SSL -

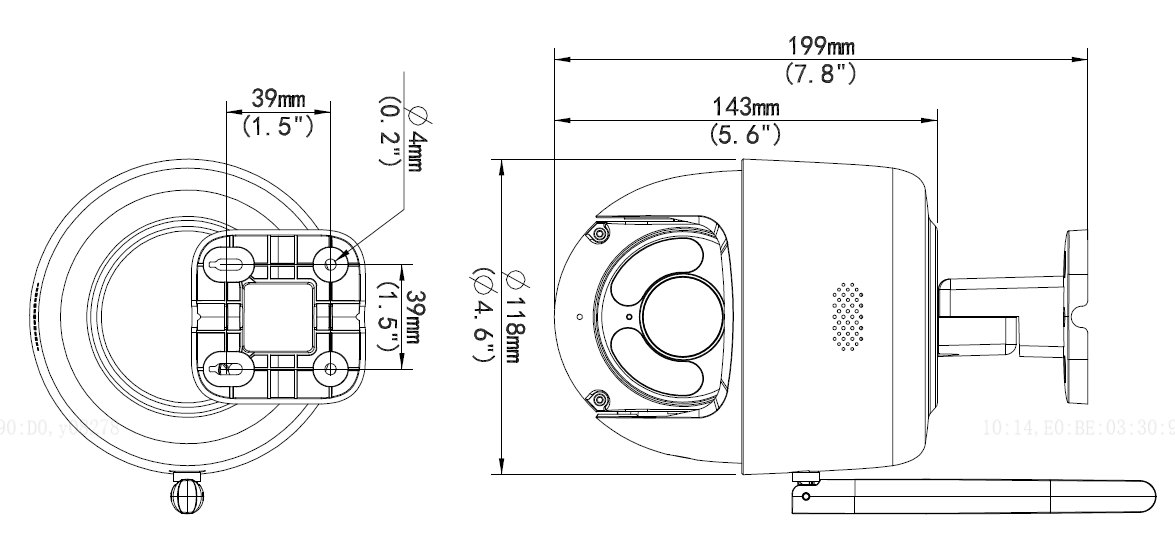

Compatible Integration ONVIF (Profile S, Profile G), API Web Browser Plug-in required live view: IE 10 and above Pan & Tilt Pan Range 0° ~ 345° Pan Speed 1°/s ~ 40°/s Preset speed: 40°/s Tilt Range 0° ~ 90° Tilt Speed 1°/s ~ 30°/s Preset speed: 30°/s Number of Presets 256 Home Position Support Interface Built-in Mic Support Built-in Speaker Support Wi-Fi Support Network 1 * RJ45 10M/100M Base-TX Ethernet General Power DC 12V ± 25% Power consumption: Max 10W Power Interface Ø 5.5mm coaxial power plug Dimensions (Ø x H) Φ118mm*118mm*199mm (Φ4.6”x 4.6”x 7.8”) Weight 0.53kg (1.17lb) Working Environment -30°C ~ 60°C (-22°F to 140°F), Humidity:≤95% RH(non-condensing) Surge Protection 4KV Reset Button Support Protection Ingression protection: IP66 Vandal resistant: N/A
