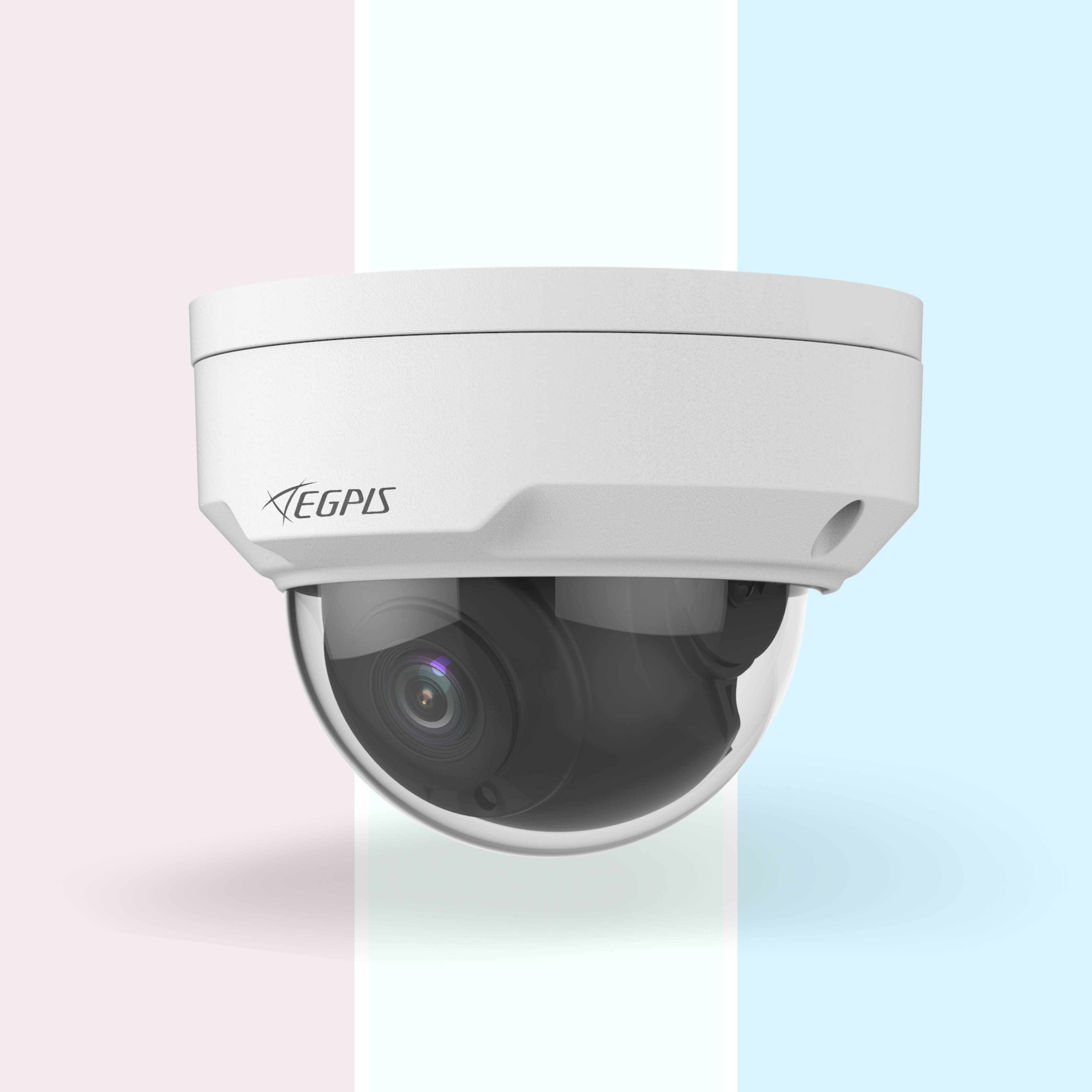

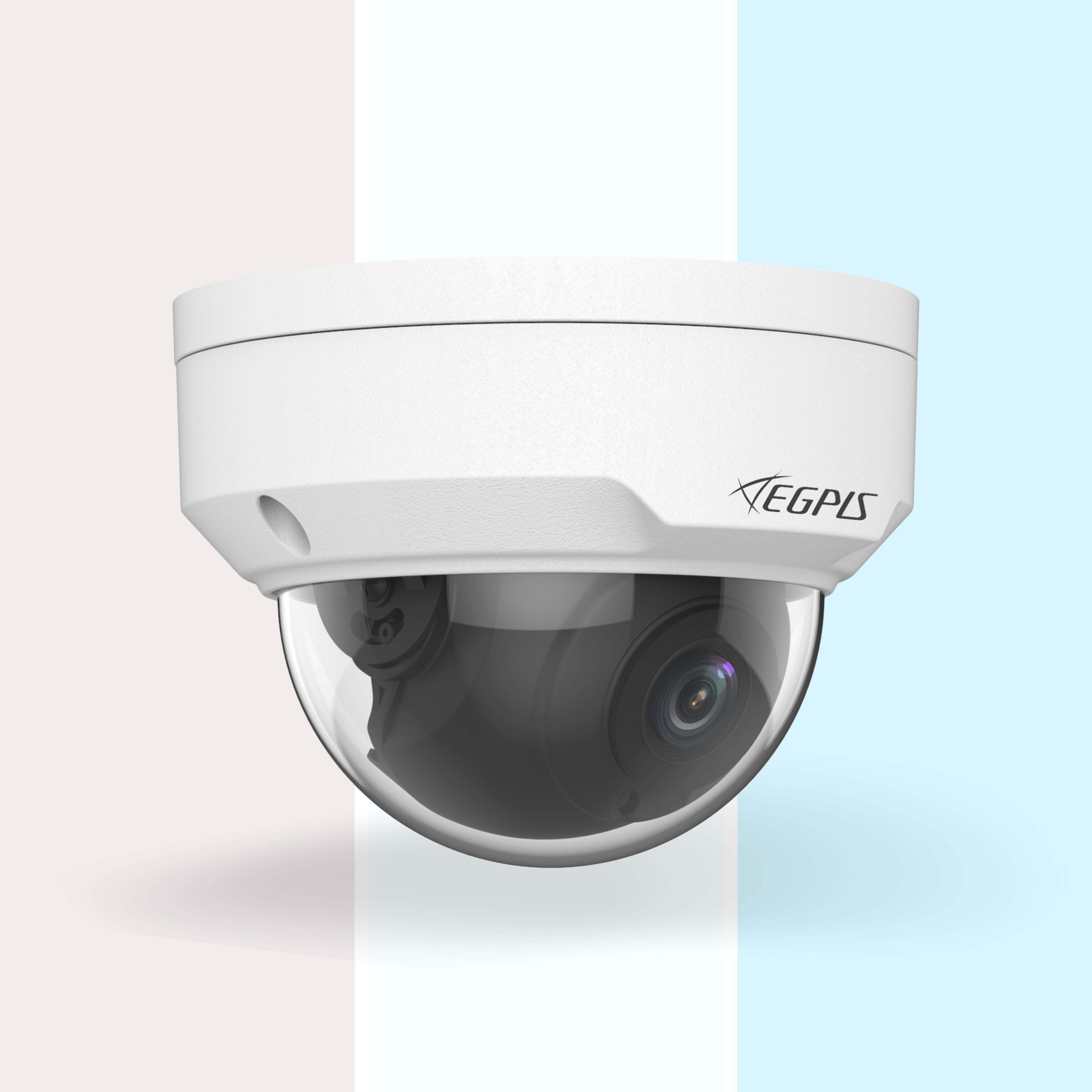

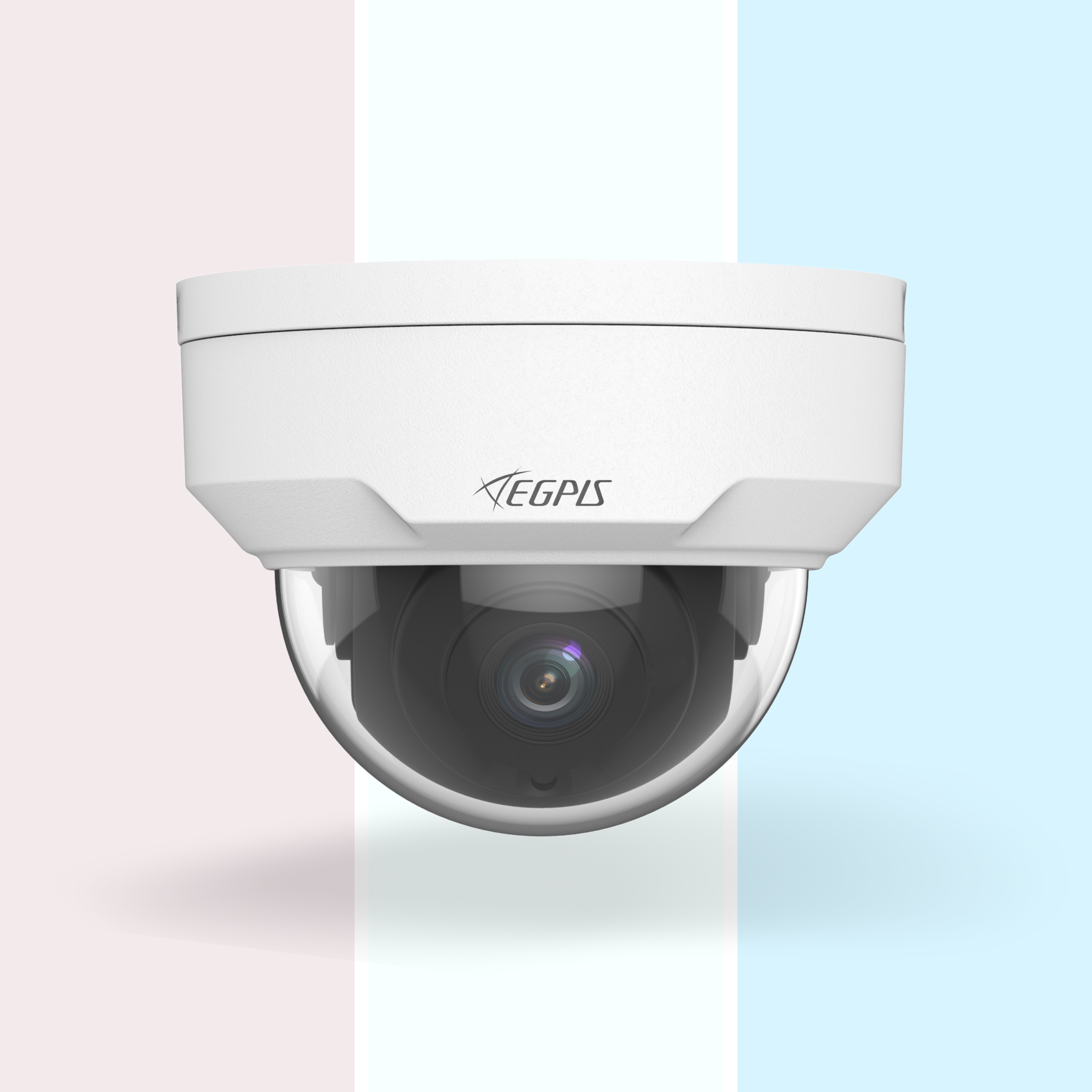

CAMERA UFO – 5MP Fixed IR Dome Network Camera – ID: IPC325LB-SF28(40)-A
Liên hệ
High quality image with 5MP, 1/3″CMOS sensor
5MP (2592*1944)@20fps; 4MP (2560*1440)@20fps; 3MP (2304*1296)@20fps; 2MP (1920*1080)@30/25fps
Ultra 265, H.265, H.264, MJPEG
Smart IR, up to 30m (98ft) IR distance
Day/night functionality
2D/3D DNR (Digital Noise Reduction)
IP67 protection
IK10 vandal resistant
DC12V or PoE(IEEE 802.3af) power supply
2-Axis
Specifications
| Camera | Description |
| Max Resolution | 5MP |
| Sensor | 1/3.0″ CMOS |
|
Min. Illumination |
Colour: 0.01 lux (F2.1, AGC ON) 0 lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 3° ~ 360°, Tilt: 0° ~ 68° |
| S/N | >52dB |
| WDR | DWDR |
| Lens | Description |
|
Focal Length |
IPC325LB-SF28-A:2.8 mm
IPC325LB-SF40-A:4.0 mm |
| Iris Type | Fixed |
| Iris | F2.1 |
|
Field of View (H) |
IPC325LB-SF28-A:97.0°
IPC325LB-SF40-A:79.0° |
|
Field of View (V) |
IPC325LB-SF28-A:52.2°
IPC325LB-SF40-A:42.3° |
|
Field of View (D) |
IPC325LB-SF28-A:107.5°
IPC325LB-SF40-A:85.1° |
| DORI | Description |
|
DORI Distance(Lens) |
IPC325LB-SF28-A:2.8mm
IPC325LB-SF40-A:4.0mm |
|
DORI Distance(Detect) |
IPC325LB-SF28-A:63.0m(206.7ft)
IPC325LB-SF40-A:90.0m(295.3ft) |
|
DORI Distance(Observe) |
IPC325LB-SF28-A:25.2m(82.7ft)
IPC325LB-SF40-A:36.0m(118.1ft) |
|
DORI Distance(Recognize) |
IPC325LB-SF28-A:12.6m(41.3ft)
IPC325LB-SF40-A:18.0m(59.1ft) |
|
DORI Distance(Identify) |
IPC325LB-SF28-A:6.3m(20.7ft)
IPC325LB-SF40-A:9.0m(29.5ft) |
| Illuminator | Description |
| Supplemental Light | IR |
| Illumination Distance(IR) | 30 m (98.4 ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
| Video | Description |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
|
Frame Rate |
Main Stream: 5MP (2592*1944) , Max 20fps; 4MP (2560*1440), Max 20fps; 3MP(2304*1296),
Max 20fps;2MP(1920*1080),Max 30fps Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Video Bit Rate | 128 Kbps ~ 6144 Kbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video Stream | Dual Streams |
| Image | Description |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180° |
| Dewarping | N/A |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Events | Description |
| Basic Detection | Motion Detection; Tampering Alarm |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User |
| Authentication; HTTP Authentication | |
| Network | Description |
|
Protocols |
IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; SNMP |
| Compatible Integration | ONVIF (Profile S, Profile T); API; SDK |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
|
Security |
Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; WSSE and Digest Authentication for ONVIF |
| Client | UNV-Link; UNV-Link Pro; EZStation |
|
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
| Interface | Description |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| Certification | Description |
|
EMC |
CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
|
Safety |
CE LVD (EN 62368-1) CB (IEC 62368-1)
UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); |
|
Protection |
IP67 (IEC 60529)
IK10 (IEC 62262) |
| General | Description |
|
Power |
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 5.0W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions | Φ109 x 81mm (Ø4.3” x 3.2”) |
| Weight | 0.32kg(0.71lb) |
| Material | Metal + Plastic |
| Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | N/A |
|
Web Client Language |
1 Language English |
