EGPIS CAMERA – 3MP SMART PT CAMERA – ID: EGPIS-S2E-M3
Liên hệ
- High quality image with 3MP, 1/3″CMOS sensor
- 3MP (2304*1296)@25/20/15fps; 2MP (1920*1080)@30/25/15fps; 720P (1280*720) @30/25/15fps
- 265, H.264
- Built-in Mic
- IR night vision, up to 10m (33ft) IR distance
- Support 256 G Micro SD card
Specification
| EGPIS-S2E-M3 | ||
| Camera | ||
| Sensor | 1/3″, 3.0 megapixel, progressive scan, CMOS | |
| Minimum Illumination | Colour: 0.02 lux (F2.0, AGC ON)
0 lux with IR on |
|
| Day/Night | IR-cut filter with auto switch (ICR) | |
| Shutter | Auto/Manual, 1/4 ~ 1/100000s | |
| Adjustment angle | Pan: 0° ~ 340° | Tilt: -5° ~ 55° |
| WDR | DWDR | |
| S/N | >52dB | |
| Lens | ||
| Lens Type | 4.0mm @F2.0 | |
| Iris | Fixed | |
| Angle of View (H) | 86.0° | |
| Angle of View (V) | 46.0° | |
| Angle of View (O) | 104.0° | |
| Illuminator | ||
| IR Range | Up to 10m (33ft) | |
| Wavelength | 850nm | |
| IR On/Off Control | Auto/Manual | |
| Video | ||
| Video Compression | H.265, H.264 | |
| H.264 code profile | Baseline profile, Main profile, High profile | |
| Frame Rate | Main Stream: 3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 640*360,Max 25fps; 2CIF(704*288), Max 25fps; CIF(352*288), Max 25fps;; |
|
| Video Bit Rate | 128 Kbps~6144 Kbps | |
| Video stream | Dual streams | |
| Events | ||
| Basic Detection | Human body detection, Motion detection, Audio Detection | |
| Auto tracking | Support | |
| Storage | ||
| Edge Storage | Micro SD, up to 256GB | |
| Audio | ||
| Audio Compression | G.711U, G.711A | |
| Audio Bitrate | 64 Kbps | |
| Two-way Audio | Support | |
| Suppression | Support | |
| Sampling Rate | 8KHZ | |
| Network | ||
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna | |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |
| Client | K-View | |
| Interface | ||
| Audio I/O | N/A | |
| Alarm I/O | N/A | |
| Built-in Mic | Support | |
| Built-in Speaker | Support | |
| WIFI | Support | |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |
| Video Output | N/A | |
| Certifications | ||
| Safety | CE LVD (EN 62368-1)
CB (IEC 62368-1) |
|
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B) |
|
-
Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) RF FCC ID (FCC CFR 47 part15 C) CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)

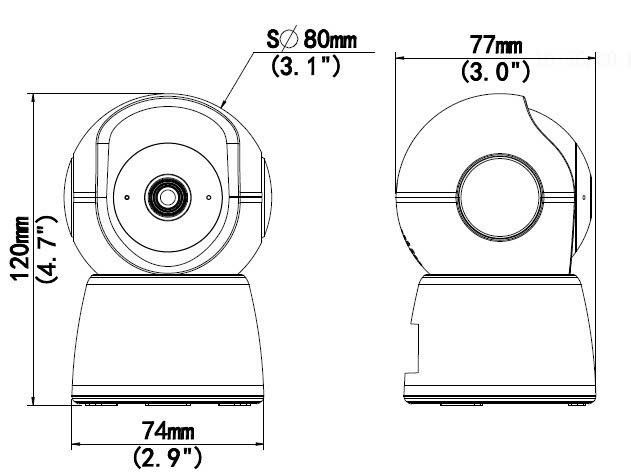

General Power DC 5V/1A Micro USB interface Dimensions (Ø x H) Φ80 x 120mm (Ø3.1” x 4.8”) Weight 0.18kg(0.40lb) Working Environment -10℃~55℃(-14°F ~ 131°F)，Humidity: ≤95% RH (non-condensing) Storage Environment -10℃~55℃(-14°F ~ 131°F)，Humidity: ≤95% RH (non-condensing) Surge Protection 4KV Reset Button Support LED indicator 1, red/blue
